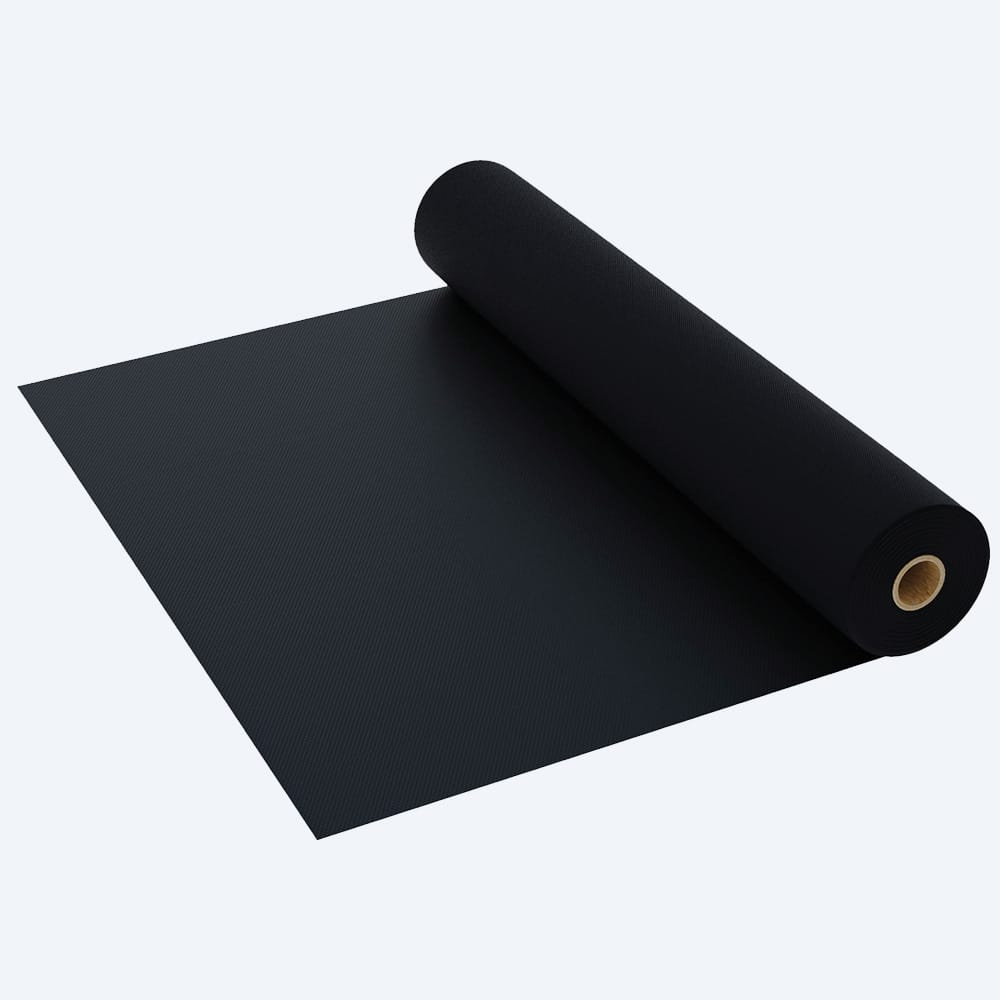

SRP AirOutshield™ UV
Product Description
Roll size (WxL): 1.5m x 50m (59” x 164’)
Gross Area per roll: 75 m² (807 ft²)
A double layer, coated polyester, water and ultra violet light (UV) resistant, vapor permeable air barrier for open joint rain screen wall systems.
Made specifically for open joint cladding systems where the membrane will be visible and resistance to long term UV exposure is needed. Install as an air barrier, secondary drainage plane or sheathing membrane in open joint cladding systems including wood, fiber, cement or metal.
Need Information?

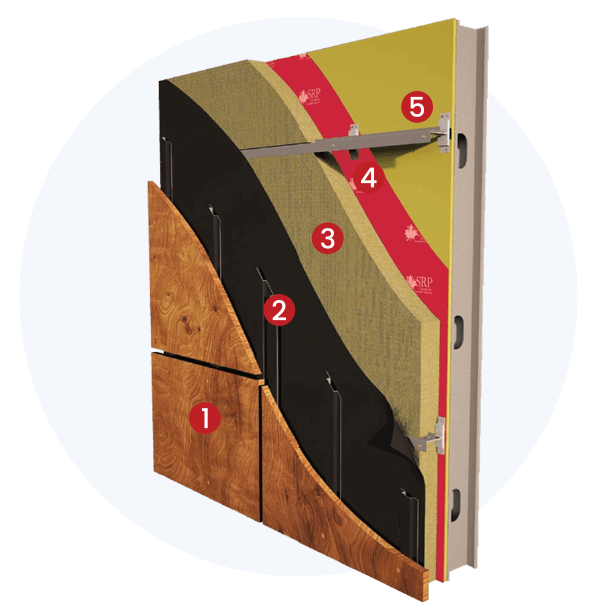

Typical Assembly
- Open-Jointed, Ventilated Rain Screen Cladding Systems
- SRP AirOutshield™ UV
- Insulation
- SRP AirOutshield™ SA280
- Sheathing
| PHYSICAL PROPERTY | TEST METHOD | RESULT |
|---|---|---|
| Nominal Weight | 270 g/m² | |
| Color | Top: Black Coated; Bottom: Black Textured | |
| UV Resistance | DIN EN 13859 | 5,000 hours exposure with a reduction in tensile strength of less than 5% |
| Cold Temperature Bending | EN 1109 | -50°C |
| Water Vapor Transmission | ASTM E96, Method A; ASTM E96, Method B | 1537 ng/Pa/s/m² (26.9 perms); 2555 ng/Pa/s/m² (44.7 perms) |
| Air Permeance | ASTM E2178 | 0.0001 L/s·m² (0.00002 cfm/ft²) @ 75 Pa |
| Fire Classification USA | ASTM E 84-13a | Class 1 or A (FS < 25, SD < 450) |
| Fire Classification Canada | CAN/ULC-S102 | Surface Burning Characteristics: FSR 10, SDC 120 |
Need Information?
Ready to Build Better? Let’s Get Started.
Talk With Our Team
Our team will assist you with choosing the ideal SRP AirOutshield™ membrane for your wall or sloped roof assembly, making sure the system matches your project’s requirements.
